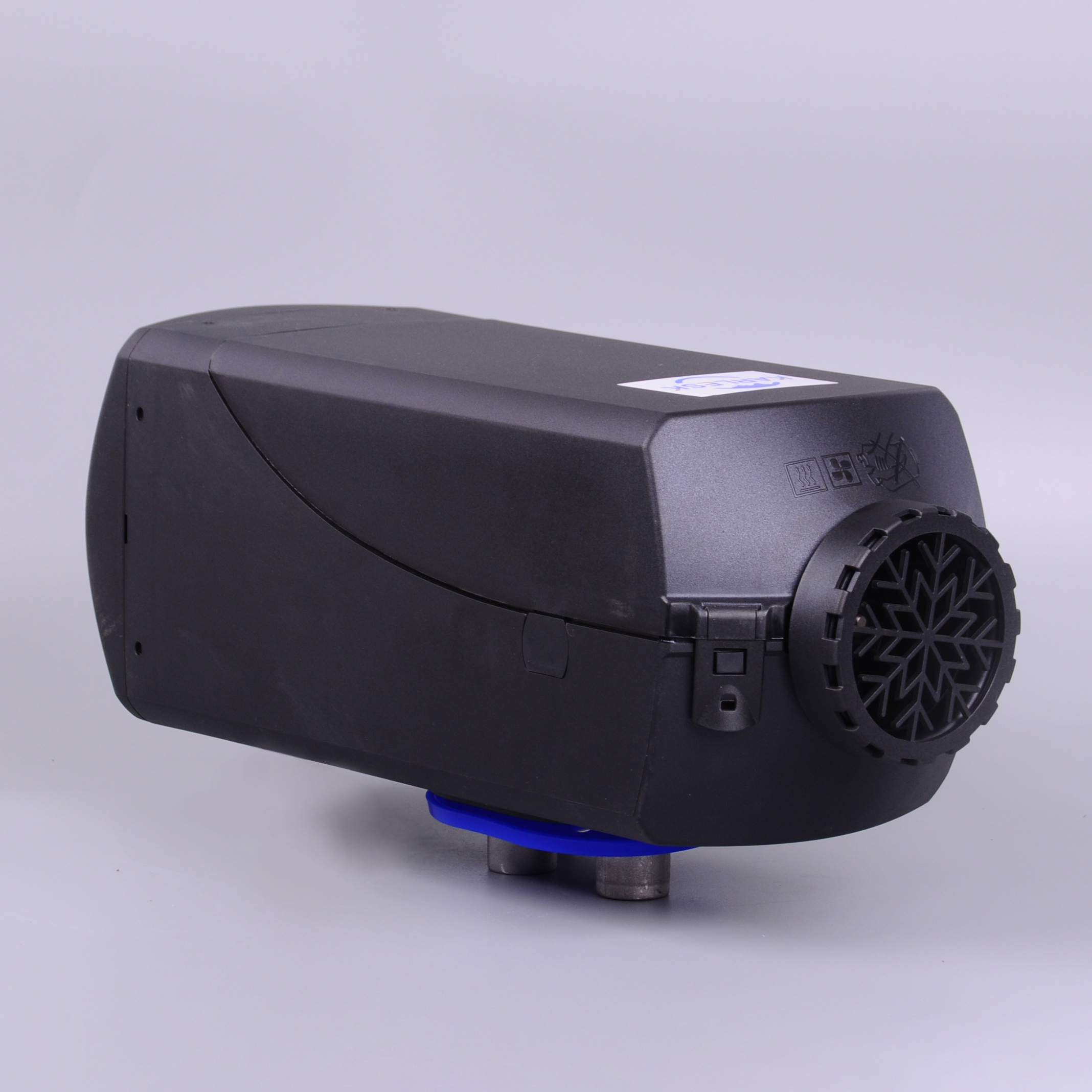

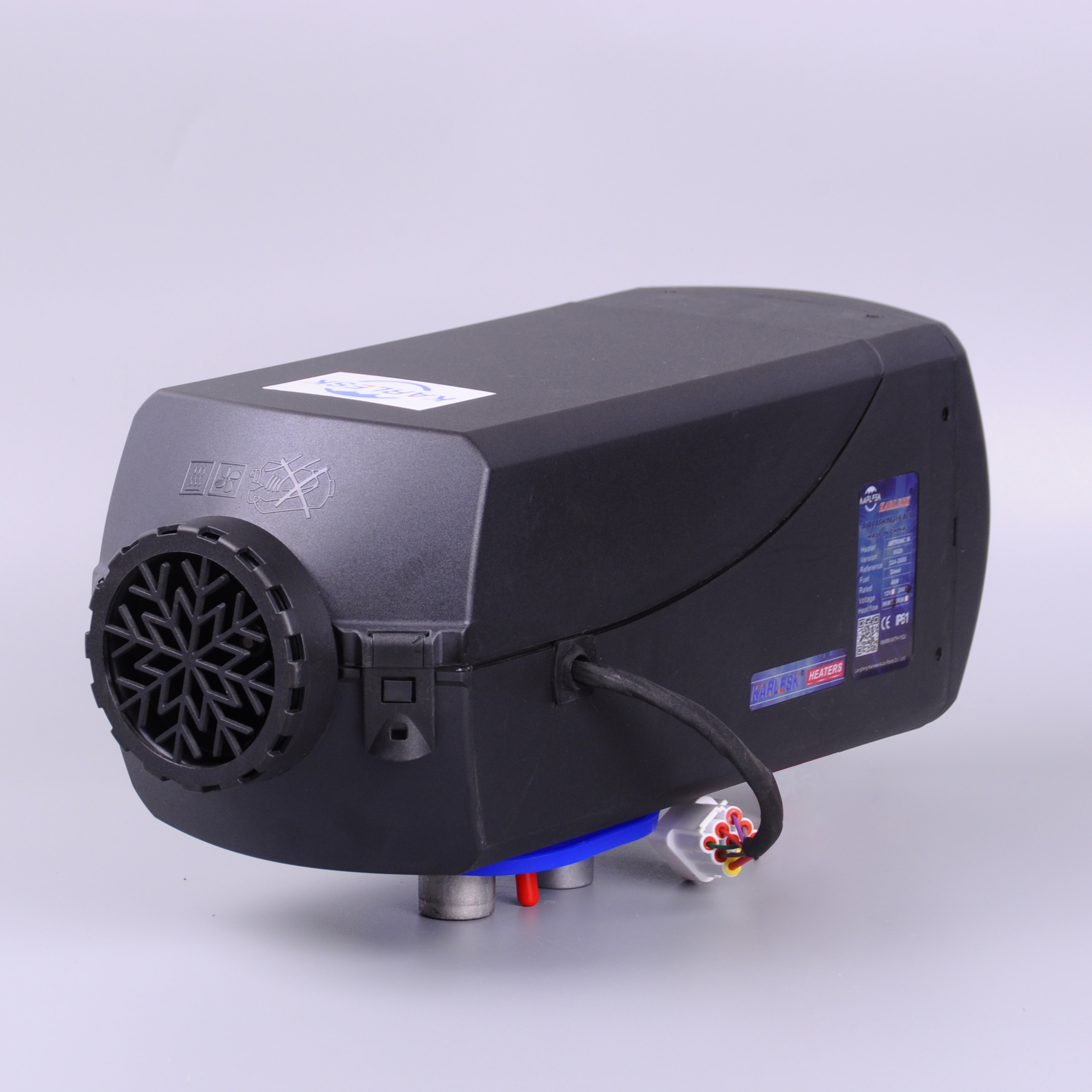

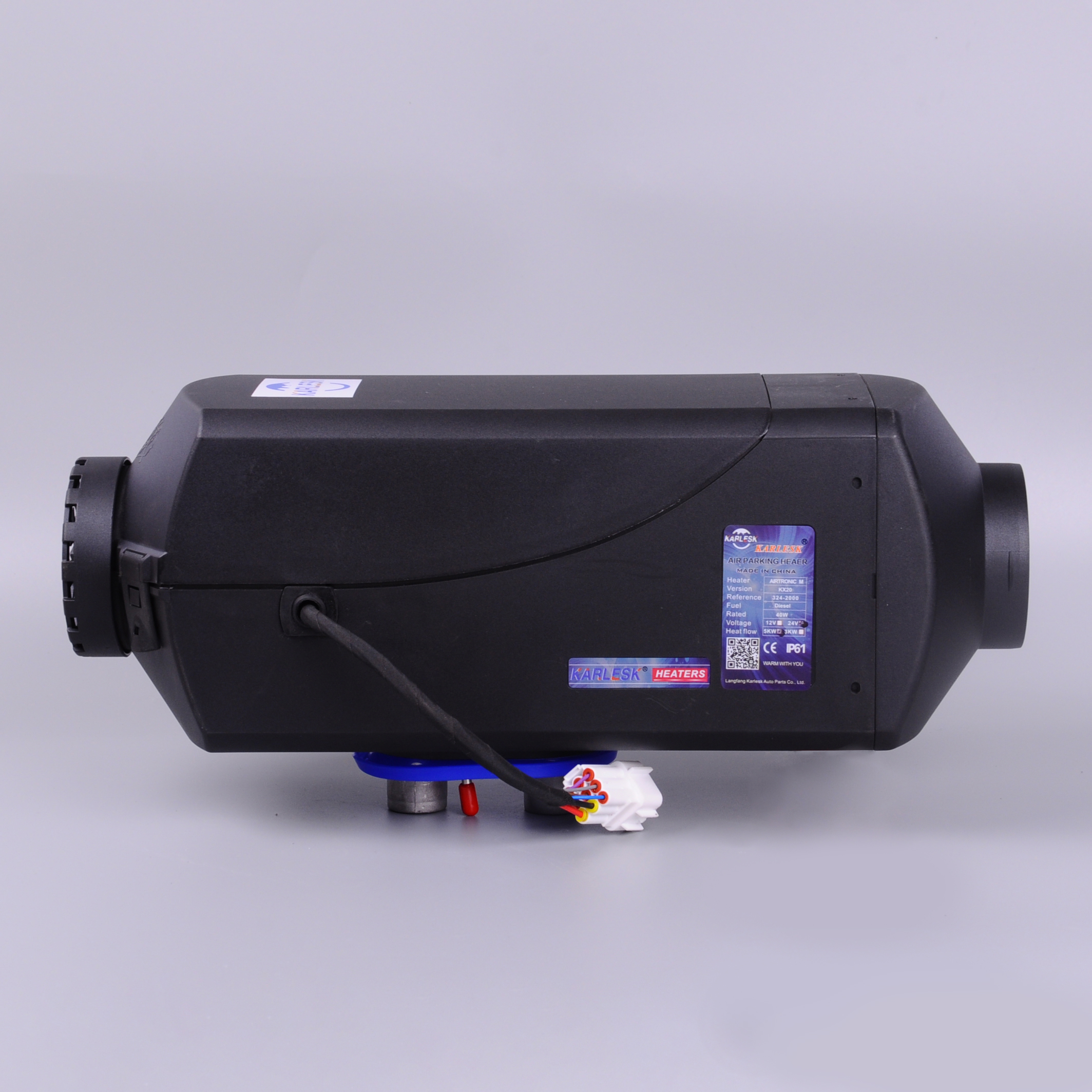

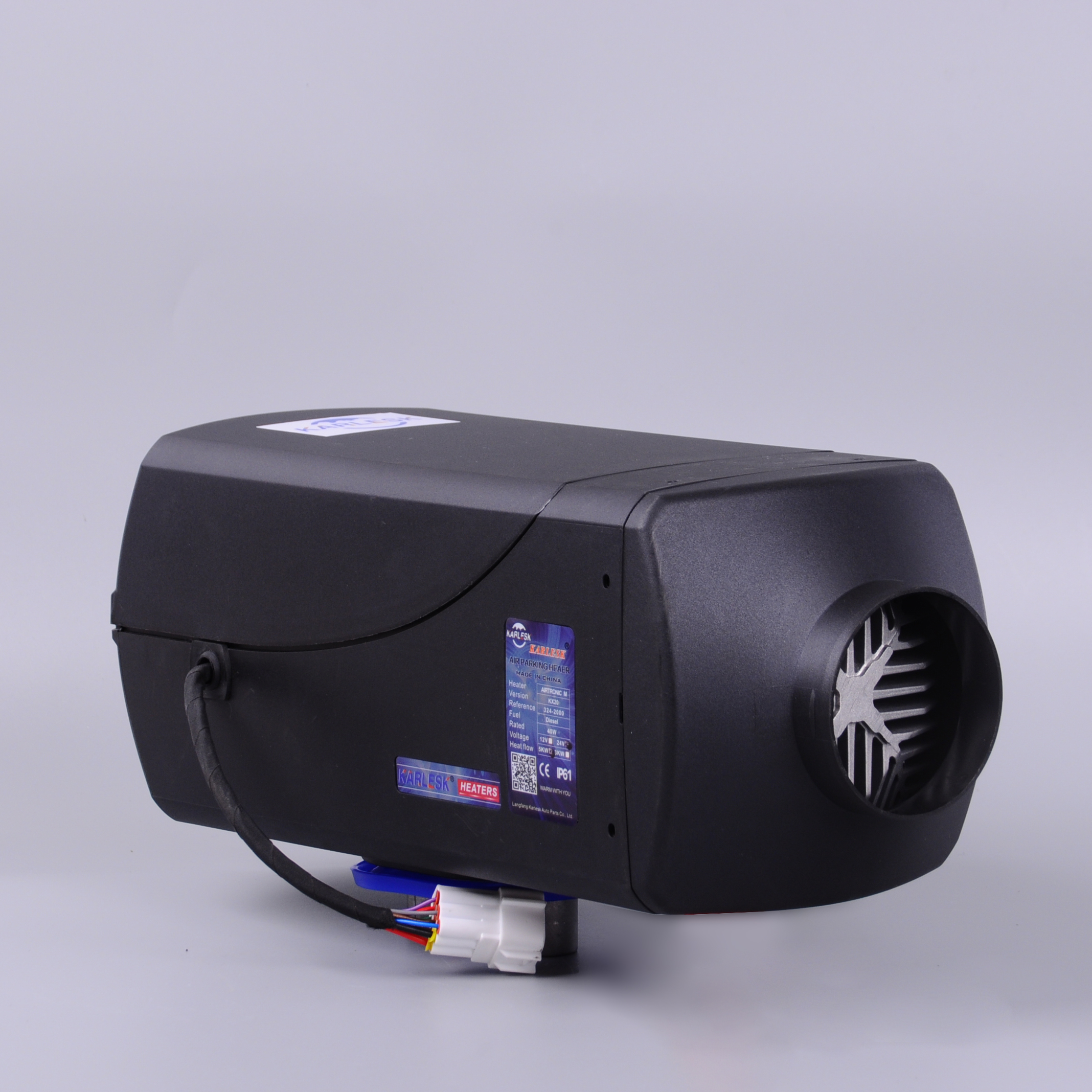

Karlesk Parking Diesel Heater K5-BA09
Auroraheat provide heating output via continuous heating power output via stepless modulation, ensuring constant temperatures. The heater operates quietly and consumes very little power and fuel.
The air heater can be used as a stand-alone heating solution or as an add-on system to existing heating solutions. Therefore Auroraheat offers heaters with different power outputs, ranging from 2 KW up to 5.5 KW. All Auroraheat can be either mounted outside, in the double-floor or inside the vehicle.
The air heater can be used as a stand-alone heating solution or as an add-on system to existing heating solutions. Therefore Auroraheat offers heaters with different power outputs, ranging from 2 KW up to 5.5 KW. All Auroraheat can be either mounted outside, in the double-floor or inside the vehicle.
Heating capacity：1.0 KW(part load) / 2.0 KW(full load)
Fuel consumption：0.1L/H(part load) / 0.2L/H(full load)
Nominal voltage：12V/24V
Nominal power consumption：includingoil pump 6W(part load)/20w(full load)
Fuels：diesel
Operating temperature：-40℃ to 80℃
Dimensions：30CM*11CM*11CM
Altitude above sea level：up to 4000M
Weight：5.5 KG
Version：Pro/Evo
Consult Now
Detail
| Heating capacity, part load /full load(kW) | 1.0/2.0 |
| Fuel consumption, part load /full load(l/ h) | 0.1/0.2 |
| Nominal voltage (V) | 12V / 24V |
| Nominal power consumption includingoil pump, part load/full load (W) | 6/20 |
| Fuels | diesel |
| Operating temperature range (°C) | -40 to +80 |
| Dimensions LxWxH(cm) | 30*11*11 |
| Weight (kg) | 5.5 |
| Permissible high altitudelevel above sea level(m) | up to 4000 |
| Version | Pro / Evo |
Advantages
☑ Optimum heat output at high altitudes thanks to integrated altitude sensor (Pro Evo range)
☑ Heating power from 2 kW to 5.5 kW
☑ Very compact heater for easy and fast installation
☑ Smooth blower and burner operation for low noise and fuel consumption.
☑ Hot air is distrilbuted through a ducting system into the motor home, ensuring a constant temperature
☑ Precise and stepless cabin temperature control
☑ Very fast heat-up phase
☑ Diesel-fueled, directly fed from the tank
☑ Available as petrol version
☑ Available as Aluminum cover version
☑ More space inside and less weight because gas bottle capacity can be reduced significantly.
☑ Heating while driving allowed in all countries
